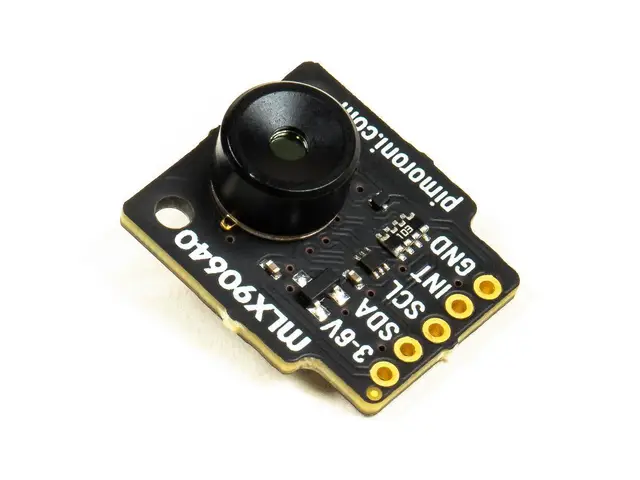

A sophisticated, hackable, 32x24 pixel thermal camera breakout! Use it to monitor the temperature of your CPU or coffee pot, or to build your own heat-seeking night vision camera. Works with Raspberry Pi or Arduino.

It's perfect for building into projects - industrial, scientific, or just fun - and much more affordable than most thermal cameras. Our breakout makes it easy to use the camera with your Raspberry Pi or Arduino, using I2C and 3-6V supply.

The MLX90640 far-infrared camera is an array of 768 (32x24) thermal sensors that can detect temperatures from -40 to 300°C with approximately 1°C accuracy and up to 64FPS! The applications of this camera are manifold: measure the heat or heat dissipation of devices like CPUs, circuit boards, or electrical appliances; use it to identify thermal inefficiencies in your home; or use it for presence detection to identify bodies in complete darkness.

Features

• Melexis MLX90640 far-infrared sensor array (datasheet)
• 32x24 pixels
• Field of view: 110°x75°
• Up to 64FPS
• -40 to 300°C detection with approximately 1°C accuracy
• I2C interface (address 0x33)
• 3.3V or 5V compatible
• Compatible with all models of Raspberry Pi, and with certain Arduino models

Kit includes

• MLX90640 breakout
• 1x5 male header
• 1x5 female right-angle header

We've designed this breakout board so that you can solder on the piece of right-angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 6, 9).

Software

We've written software in C that you can use to generate images and video from the MLX90640 cameras.

SparkFun also provide an example Arduino/Processing sketch for the MLX90640.

Our software does not support Raspbian Wheezy.

Notes

The camera's pins push through friction-fit holes on the breakout board, allowing the camera to be swapped out, if necessary, but they can also be soldered for extra security.

Dimensions: 19x19x2.75mm (LxWxH).
