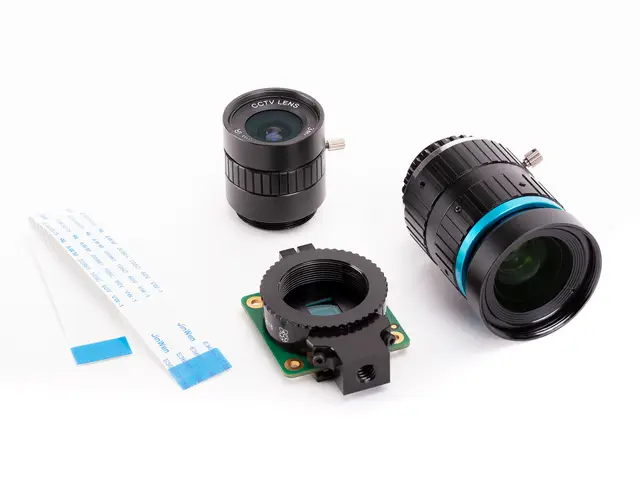

Set: 6mm CS-Mount Lens + 16mm C-Mount Lens + Raspberry Pi HQ Camera Modul

The camera module

The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from www.raspberrypi.org (Excluding early Raspberry Pi Zero models, which lack the necessary FPC connector. Later Raspberry Pi Zero models require an adapter FPC, sold separately.).

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter.

The lenses

This 6mm lens is suitable for basic photography. It can also be used for macro photography because it can focus objects at very short distances.

Here you can find a step-by-step instructions for fitting the CS-mount lens.

The 16 mm lens provides a higher quality image than the 6 mm lens. It has a narrow angle of view which is more suited to viewing distant objects.

Here you can find a step-by-step instructions for fitting the C-mount lens.

Specification

Fitting lenses

The High Quality Camera is designed to accept CS-mount lenses. An optional adapter is supplied to extend the back focus by 5 mm , such that the camera is also compatible with C-mount lenses.

Please ensure that the dust cap is fitted when there is no lens fitted, because the sensor is sensitive to dust. To fit a lens, unscrew the dust cap and screw the lens into the threads. Remove the C-CS adapter when a CS-mount lens is to be fitted; it is only required when a C-mount lens is fitted.

The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of thirdparty products that are compatible with the High Quality Camera. See step-by-step instructions for fitting the CS-mount and C-mount lenses.

Safety Instructions

• Before connecting the device, shut down your Raspberry Pi computer and disconnect it from external power.
• If the cable becomes detached, pull the locking mechanism forward on the connector, insert the ribbon cable ensuring the metal contacts face towards the circuit board, then push the locking mechanism back into place.
• This device should be operated in a dry environment at 0–50°C.
• Do not expose it to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose it to excessive heat from any source.
• Care should be taken not to fold or strain the ribbon cable.
• Care should be taken when screwing in parts or fitting a tripod. A cross-thread can cause irreparable damage and void the warranty.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.
• Store in a cool, dry location.
• Avoid rapid changes of temperature, which can cause moisture build up in the device, affecting image quality.
